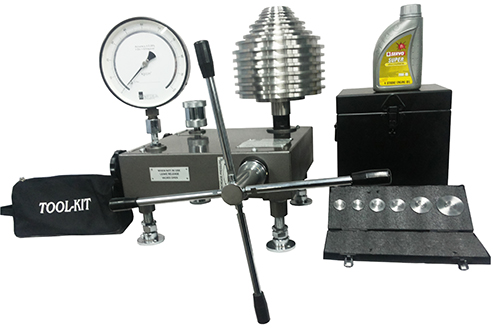

Dead Weight Pressure Gauge Tester > DW 10 Series

Models of DW 10 series are provided with one large capacity screw pump and a removable oil reservoir with isolating valve in a simple line circuit permitting effective air removal.

WORKING PRINCIPLE: The Dead Weight Pressure Gauge Testers make use of the relationship between pressure acting on the known area of a vertically free floating piston producing a force balanced by known dead weight.

MAIN COMPONENTS of the tester are :-

Screw Pump: It is used to generate pressure in the circuit of adequate capacity and is operated by a spoked handle which permits easy and accurate setting of pressure.

Free Piston Assembly: It is made of special steel, hardened, tempered, ground and lapped to accurate size and very fine surface finish provides true floating action.

Set of Weights: Each weight is directly marked in convenient values of pressure and is easily stacked on the weight carrier which is placed on to the free piston. The calibration can be provided in various units of pressure measurement namely kgf/cm2, bar, lbf/in2, kPa, KN/m2 as per customer requirement. Weights are available in two material options : MS Phosphated black & SS 304. Storage box is provided for storing weights safely.

Gauge Connector: of 1/2" BSP (female) union for connecting the gauge to be tested. Gauges with other connecting threads may be connected using adoptors provided.

Base Plate: The instrument is mounted on a sturdy base plate provided with levelling screws. The entire circuit is covered by a sheet metal cover.

Incremental Weights: to provide smaller steps (better least count) is available for all models at extra cost.

Calibration / Traceability: Calibration is done against Master Dead Weight Pressure Gauge Tester and Master Dial Pressure Gauges using cross-float method. Our instruments are backed by test certificates traceable to National Standard to meet the requirements of ISO 9000, QS 14000 and other Inspection Agencies.

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW10 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 0.1 0.01 2.5 1 0.1 40 0.1 0.01 2.5 0.01 0.001 0.25
INC 0.1 0.001 2.5 1 0.005 40 0.1 0.001 2.5 0.01 0.0001 0.25

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW11 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 0.1 0.05 6 1 0.5 80 0.1 0.05 6 0.01 0.005 0.6
INC 0.1 0.001 6 1 0.02 80 0.1 0.001 6 0.01 0.0001 0.6

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW12 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 0.2 0.05 16 2 1 200 0.2 0.05 16 0.02 0.005 1.6
INC 0.2 0.002 16 2 0.05 200 0.2 0.002 16 0.02 0.0002 1.6

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW13 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 0.4 0.1 25 5 1 360 0.4 0.1 25 0.04 0.01 2.5
INC 0.4 0.005 25 5 0.05 360 0.4 0.005 25 0.04 0.0005 2.5

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW14 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 0.4 0.1 40 5 1 500 0.4 0.1 40 0.04 0.01 4
INC 0.4 0.005 40 5 0.05 500 0.4 0.005 40 0.04 0.0005 4

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW15 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 1 0.1 60 10 2 800 1 0.1 60 0.1 0.01 6
INC 1 0.01 60 10 0.1 800 1 0.01 60 0.1 0.001 6

MODEL RANGE (kgf / cm2) RANGE (lbf / in2) RANGE (bar) RANGE (MPa)
DW16 Min. Step Max. Min. Step Max. Min. Step Max. Min. Step Max.
REGULAR 1 0.1 100 20 5 1500 1 0.1 100 0.1 0.01 10
INC 1 0.01 100 20 0.2 1500 1 0.01 100 0.1 0.001 10

FIELDS OF APPLICATION:
Automobile Industry
Breweries & Distilleries
Textile Industry
Pipe Manufacturers
Pipeline Contractors
Metals Industry
Cement Industry
Electronics Industry
Paper Industry
Engineering Industry
Food & Drug Industry
Chemicals & Fertilizer Industry
Glass Industry
Industrial & Medical Gases
Sugar Industry
Gas & LPG Cylinders
Petroleum & Petrochemical Industry
Airlines
Railways
Defence Organisation
Engg. Colleges & Training Institutes
Ceramic Industry
Thermal Power Stations
Hydro-Electric Power Generation

STANDARD PARAMETERS
Gravity : 9080665 m/s2
Air Density : 1.159087 Kg/m3 (For Low Pressure)
                        1.155872 Kg/m3 (For High Pressure)

OPERATING FLUID:
Hydraulic Oil
  (Multigrade Mobil Oil)

STANDARD ACCESSORIES:
Storage Box for Weights
Set of Spare Seals
Dust Cover
Instruction Manual
Tin of Oil (1/2 L)
Adaptors : M20 x 1.5, 1/4" BSP & 3/8" BSP
Standard Tool Kit including Spanners, Allen Key, Screw Driver, Spirit Level

MATERIAL OF CONSTRUCTION
Piston : HCHCr / Tungsten Carbide
Cylinder : HCHCr / Tungsten Carbide
Base Instrument : MS Painted
Pipelines : Stainless Steel
Weights : Stainless Steel / MS Phosphated Black

OPTIONAL ACCESSORIES
Adaptors 1/8", 1/4", 3/8", 1/2" NPT
Angle Connection (1/2" M x 1/2" F BSP)
Pointer Puller & Pointer Punch
Steel Carrying Box for Tester

ENVIRONMENTAL CONDITIONS
Temperature : 23oC +/- 1oC
Humidity : 50% +/- 10%

ACCURACIES AVAILABLE
+/- 0.1% of reading taken

+/- 0.05% of reading taken

+/- 0.03% of reading taken
