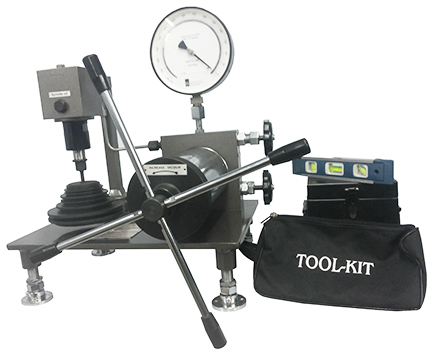

It is used for calibration of vacuum gauges and other sensing, transmitting and recording vacuum instrument. The 'RAVIKA' Vacuum Gauge Tester is a quick and convenient method of calibration free from the disadvantages of using the fragile mercury manometer.

The main components of the tester are :

SCREW PUMP to generate the vacuum in the tester conveniently and precisely. It is of adequate capacity and is operated by turning the spoked handle.

FREE PISTON Assembly of special steel, hardened, tempered, ground and lapped to accurate size and very fine surface finish to provide true floating action. The free piston is suspended vertically downward from a rigid frame and is connected by a pipe to the screw pump. A CARRIER weight is attached to the free piston for taking more weights.

VALVE is provided to connect the circuit to the atmosphere and thus check zero of the gauge.

GAUGE CONNECTOR of 1/2" BSP (female) union for connecting gauge to be tested. Other sizes of gauges can be connected by using adaptors.

SET OF WEIGHTS directly marked in convenient values of vacuum and easily stacked on the CARRIER weight. It is available in either / and kgf / cm 2 , mmHg, in Hg units. Storage box is provided.

BASEPLATE of sturdy construction provided with legs and levelling screws.

FIELDS OF APPLICATION: Automobile Industry Breweries & Distilleries Textile Industry Pipe Manufacturers Pipeline Contractors Metals Industry Cement Industry Electronics Industry Paper Industry Engineering Industry Food & Drug Industry Chemicals & Fertilizer Industry Glass Industry Industrial & Medical Gases Sugar Industry Gas & LPG Cylinders Petroleum & Petrochemical Industry Airlines Railways Defence Organisation Engg. Colleges & Training Institutes Ceramic Industry Thermal Power Stations Hydro-Electric Power Generation

STANDARD ACCESSORIES: Storage Box for Weights Set of Spare Seals Dust Cover Instruction Manual Tin of Oil (1/2 L) Adaptors : M20 x 1.5, 1/4" BSP & 3/8" BSP Standard Tool Kit including Spanners, Allen Key, Screw Driver, Spirit Level     MATERIAL OF CONSTRUCTION Piston : HCHCr Cylinder : HCHCr Base Instrument : MS Painted Pipelines : Stainless Steel Weights : Stainless Steel / MS Phosphated Black     OPTIONAL ACCESSORIES Adaptors 1/8", 1/4", 3/8", 1/2" NPT Angle Connection (1/2" M x 1/2" F BSP) Pointer Puller & Pointer Punch     CALIBRATION / TRACEABILITY   The calibration is done against Test Gauges certified by National Physical Laboratory, New Delhi and our Test Certificate shall give the comparative results aginst them.
